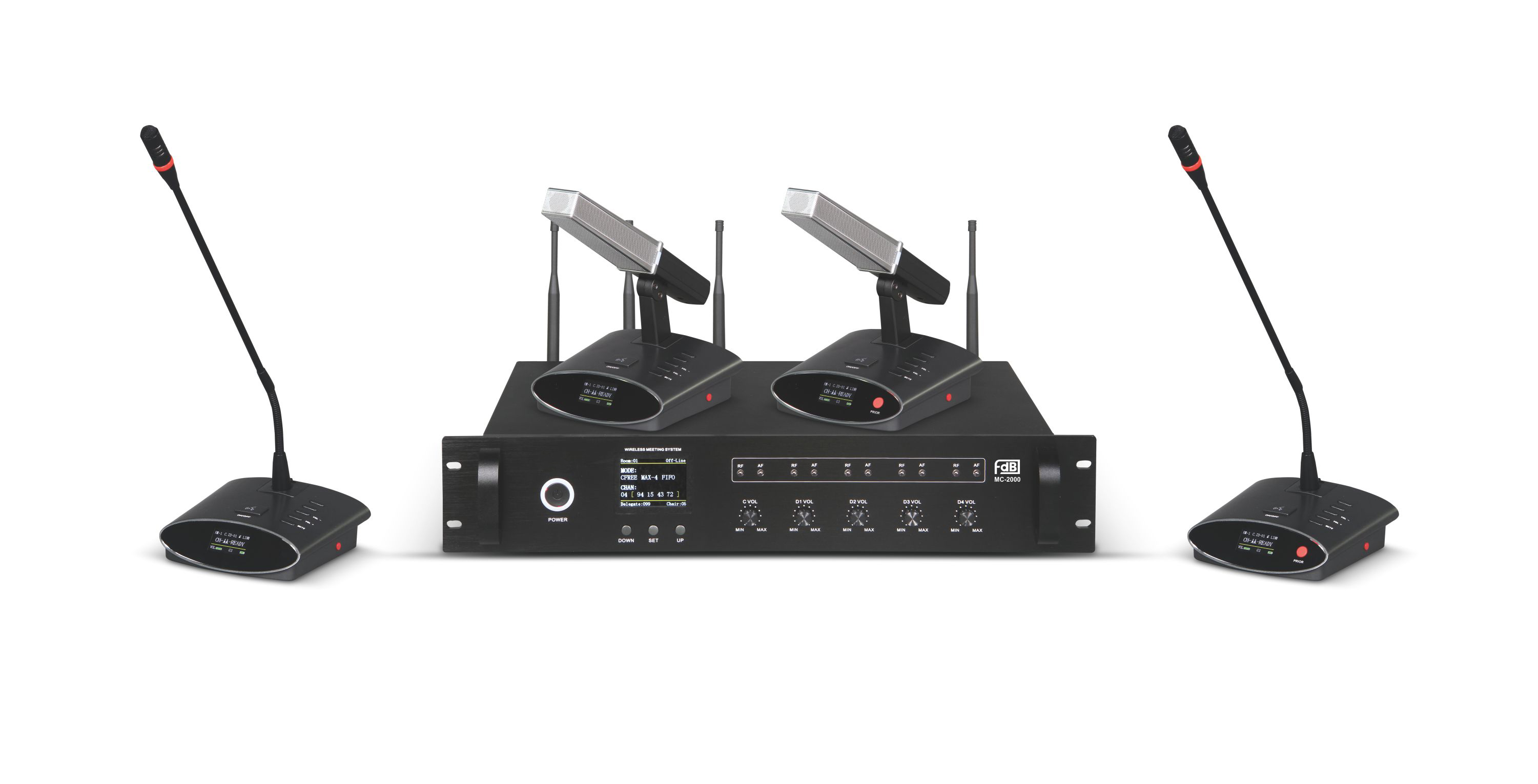

MC-2000
無線全數字會議系統
產品概述
MC-2000是一款無線會議系統，全數字控制，具多種發言模式，本系統主機可與視像主機連接實現視像跟蹤、簽到表決功能。本系統無線列席單元使用新型防嘯叫單指向高靈敏度電容咪芯，采用FM調頻實現聲音信號傳輸，高保真，信噪比高，無聲音延時；供電可使用普通電池，也可使用充電鋰電池，既方便又環保。本系統操作簡便、安裝方便、經濟實用，是會議工程的好選擇。
技術參數
系統總參數指標 System Overall Parameters
●音頻頻率響應Frequency Response：50Hz ~15KHz
●音頻總增益Gain：≦20dB; 噪比S/N Ratio：>85dB
●音頻總諧波失真Harmonic Distortion：≦0.8%
●無線信號覆蓋范圍：室內半徑60米(不包括使用天線延長器或天線放大器)
Wireless Signal Coverage: indoor radius 60m(excluding the use of antenna extender or antenna amplifier)
●音頻頻率響應Frequency Response：50Hz ~15KHz
●音頻總增益Gain：≦20dB; 噪比S/N Ratio：>85dB
●音頻總諧波失真Harmonic Distortion：≦0.8%
●無線信號覆蓋范圍：室內半徑60米(不包括使用天線延長器或天線放大器)
Wireless Signal Coverage: indoor radius 60m(excluding the use of antenna extender or antenna amplifier)
| 主機技術指標host Parameters | ||
| 帶表決款Vote | ||
| 主控機特點Host Feature | 內置移頻功能, 帶有線單元 | |
| 無線單元音頻輸出接口 | ||
| 帶RS-232控制接口 | ||
| Built in frequency shift | ||
| function, with wired unit, | ||
| wireless unit audio output | ||
| port, with RS-232 | ||
| control port | ||
| 電源輸入Power Input | DC12V~15V,1.0A~2.0A | |
| 消耗功率Consumed Power | < 7W | |
| 工作溫度Work Temperature | -10℃~40℃ | |
| 尺寸Dimension | 485x100(2U,包括機箱腳墊)x355mm | |
| 485x100(2U including case foot pad)x355mm | ||
| 重量Net Weight | 7.2 kg | |
| 音頻信道 Voice Channel | ||
| 通信方式Communication Mode | UHF無線方式(單向) wireless mode, single track | |
| 信道數Channel Count | 5路(1主席單元通道，4代表單元通道) | |
| 5 channels (1 Chairman unit channel, | ||
| 4 representative units channels) | ||
| 頻率范圍Frequency Range | 頻率段在640MHz~669.75MHz范圍內可供選擇 | |
| Can be chosen from from | ||
| 640MHz~669.75MHz frequency range | ||
| 調制方式Modulation Method | FM | |
| 接收靈敏度Receiving Sensitivity | -100dBm | |
| 控制信道Control Channel | ||
| 通信方式Communication Mode | 無線方式(雙向)wireless mode(double tracks) | |
| 信道數Channel Count | 16 | |
| 頻率范圍Frequency Range | 422.4MHz～438.4MHz | |
| 調制方式Modulation Method | FSK | |
| 接收靈敏度Receiving Sensitivity | -100dBm | |
| 輻射功率 Radiant Power | ≦+6dBm | |
| 頻率偏差Frequency Deviation | <0.002 | |
| 數據速率Data Rate | 100KBPS | |
| 無線款列席單元話筒技術指標 Wireless Attend Unit Microphone Parameters | ||
| 單元特點Unit Feature | 款式1 Mode 1 | 款式2 Mode 2 |
| 連體式大咪管,可拆卸專 | 可拆卸專用鋰電池 | |
| 用鋰電池或5號電池供電 | 或5號電池供電 | |
| Connected large mic tube, | removable special | |
| removable special lithium | lithium battery or | |
| battery or No.5 battery | No.5 battery | |
| 工作電源Work Power | DC 3.7V -- 4.5V | |
| 消耗功率Consumed Power | 待機standby ≦360mW, | |
| 講話狀態speech state ≦630mW | ||
| 工作溫度Work Temperature | -10℃~40℃ | |
| 咪桿長Mic Rod Length | 240 | 420 |
| 底座尺寸Socket Size | 152×55×140 | |
| 重量 Net Weight | 0.64 | 0.6 |
| 音頻信道Voice Channel | ||
| 通信方式Communication Mode | UHF無線方式(單向)wirless mode(single track) | |
| 信道數Channel Count | 5路(1主席單元通道，4代表單元通道) | |
| 5 channels (1 Chairman unit channel, | ||
| 4 representative units channels) | ||
| 頻率范圍Frequency Range | 頻率段在640MHz~669.75MHz 范圍內可供選擇 | |
| Can be chosen from from | ||
| 640MHz ~669.75MHz frequency range | ||
| 調制方式Modulation Method | FM | |
| 最大調制量Max Modulation | 60K | |
| 輻射功率Radiant Power | ≦+9dBm | |
| 頻率偏差Frequency Deviation | <0.002 | |
| 講話距離Speech Distance | 10cm--30cm | |
| 控制信道Control Channel | ||
| 通信方式Communication Mode | 無線方式(雙向)wireless mode(double tracks) | |
| 信道數Channel Count | 16 | |
| 頻率范圍Frequency Range | 422.4MHz -- 438.4MHz | |
| 調制方式Modulation Method | FSK | |
| 接收靈敏度Receiving Sensitivity | -100dBm | |
| 輻射功率Radiant Power | ≦+6dBm | |
| 頻率偏差 Frequency Deviation | <0.002 | |
| 數據速率Data Rate | 100KBPS | |
