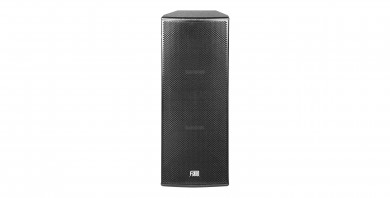

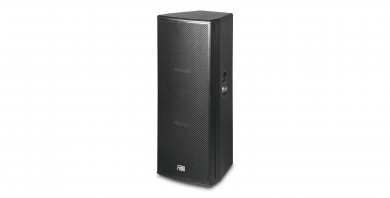

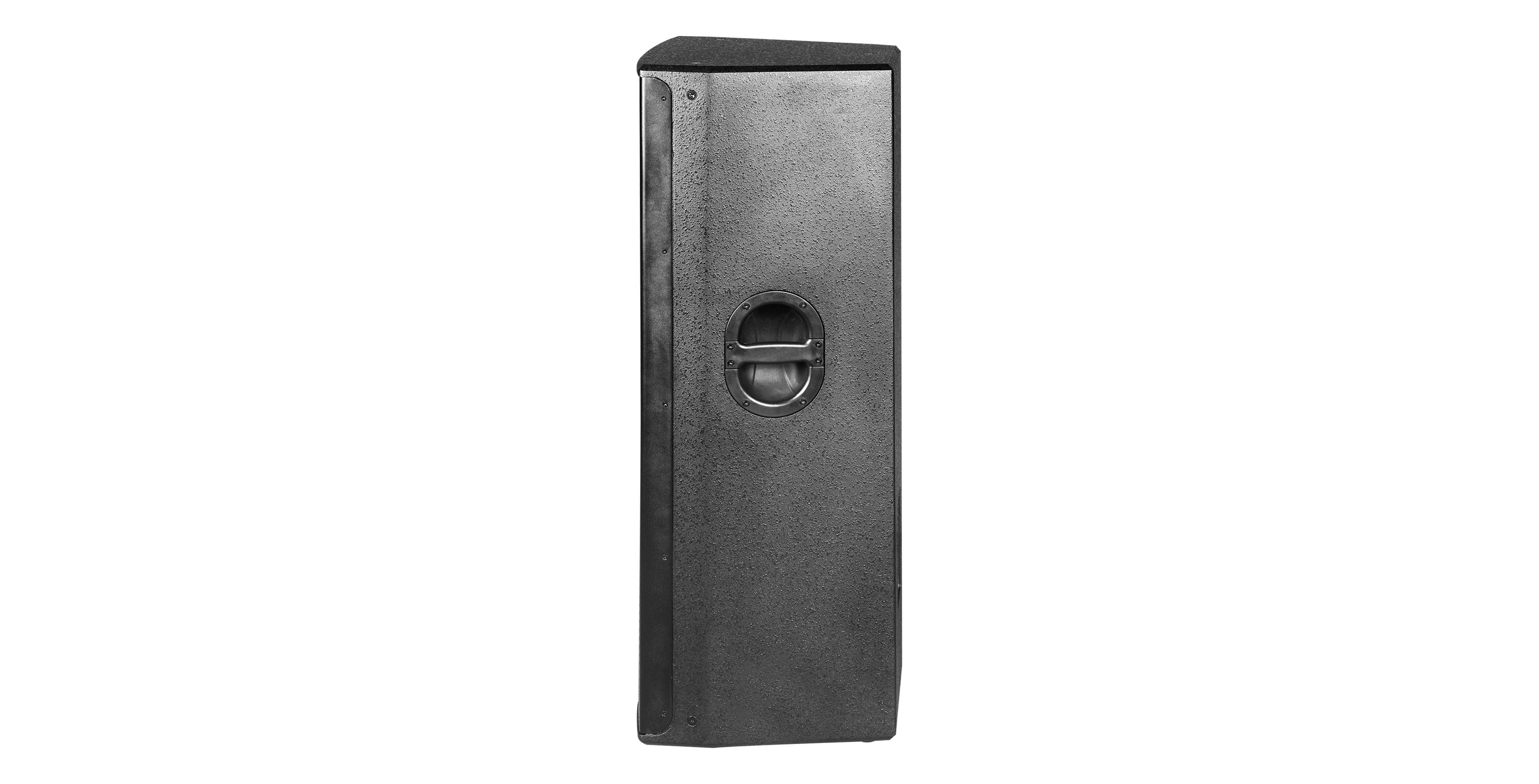

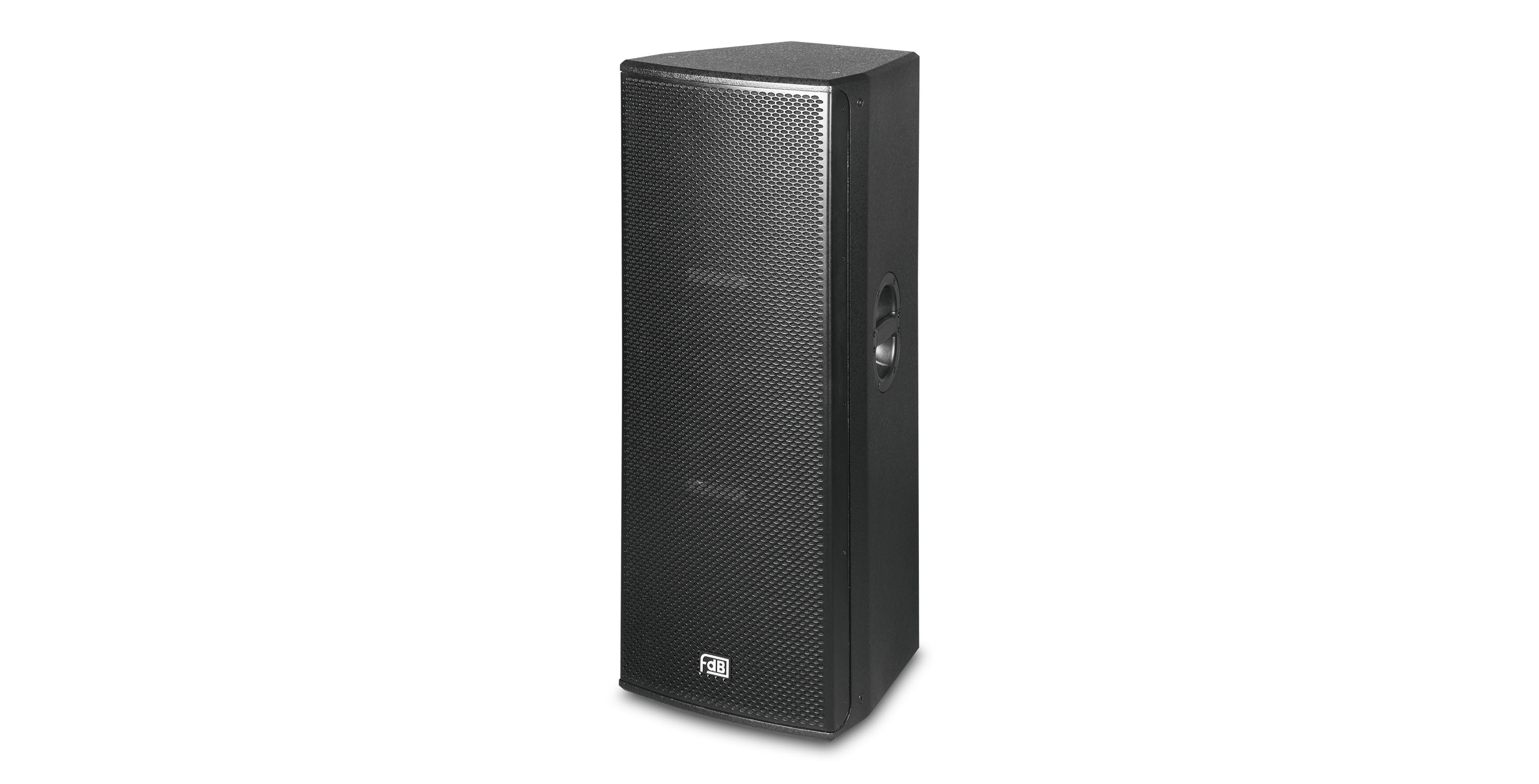

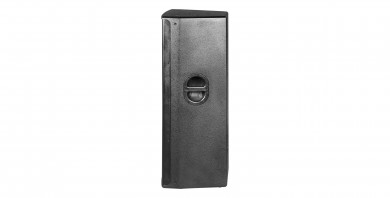

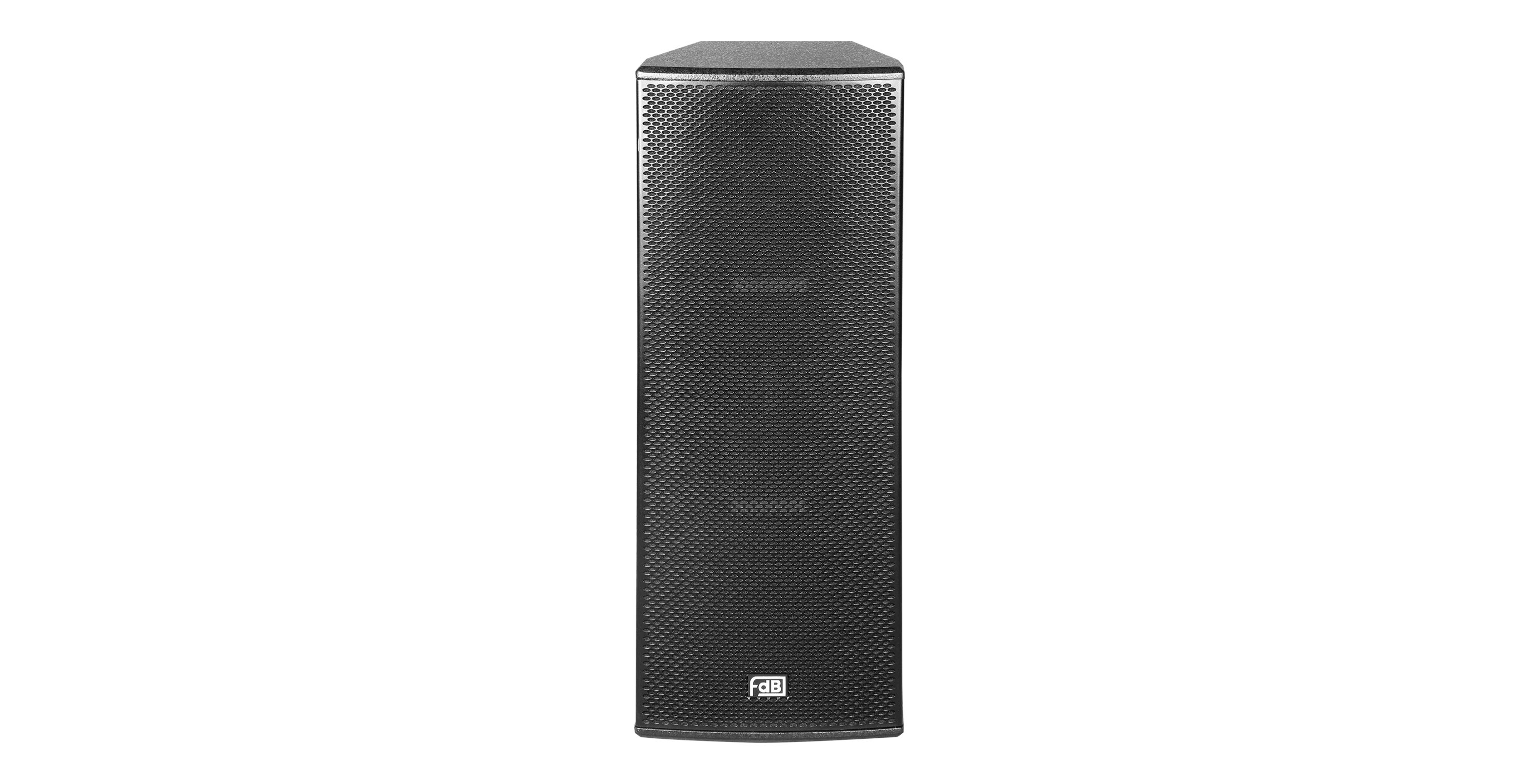

U212G
2x12"兩分頻全音域音箱
產品概述
The U212G is the ideal general-purpose loudspeaker with a wide frequency response, suitable for all kinds of mid-field theatre and live venue applications that require professional sound quality.
U212G是一款雙12"兩分音全音域音箱。采用兩只12"高效率低音單元，一只1.4"喉口75芯鈦膜高音驅動器配置90°×45° 專門設計號角，箱體采用多層復合夾板，水性環保噴涂制作。
產品特點
FEATURES
●High quality plywood with special environmental protection paint
●Compact two-way passive system
●Mid-high frequency's sensitivity can be adjusted
●Rotatable 90°×45° horn
●Flexible mounting options
產品特征
●中高音靈敏度可調
●高質量單元配置，高強度夾板箱體
●多吊掛點，操作簡易快捷
●超長品質保證期：品質與信心的保證
適用范圍
●用于全音域擴聲、劇院、廳堂擴聲、慢搖吧
●多功能廳、高級酒店會所
●流動商演、樂隊擴聲以及舞臺返送音箱
●High quality plywood with special environmental protection paint
●Compact two-way passive system
●Mid-high frequency's sensitivity can be adjusted
●Rotatable 90°×45° horn
●Flexible mounting options
產品特征
●中高音靈敏度可調
●高質量單元配置，高強度夾板箱體
●多吊掛點，操作簡易快捷
●超長品質保證期：品質與信心的保證
適用范圍
●用于全音域擴聲、劇院、廳堂擴聲、慢搖吧
●多功能廳、高級酒店會所
●流動商演、樂隊擴聲以及舞臺返送音箱
技術參數
| MODEL | U212G |
| FREQUENCY RESPONSE(-3dB) | 45 Hz-18kHz |
|
FREQUENCY RESPONSE(-10dB) |
40 Hz-20kHz |
| DRIVERS | 2×12"(300mm)/3"voice coil LF |
| 1×1.4"(36mm)/3"voice coil HF | |
| RATED POWER | 750W RMS,3000W peak |
| SENSITIVITY | 100dB 1watt/1 metre |
| MAXIMUM SPL | 128dB continuous,134 dB peak |
| IMPEDANCE | 4 ohms nominal |
| DISPERSION(-6dB) | 90°×45° |
| CROSSOVER FREQUENCIES | 1.5kHz passive |
| INPUT CONNECTORS | 2×Speakon NL4 |
| PACKAGE SIZE | 480mm×470mm×1128mm |
| NET WEIGHT | 39 kg/pc |
| GROSS WEIGHT | 45 kg/pc |

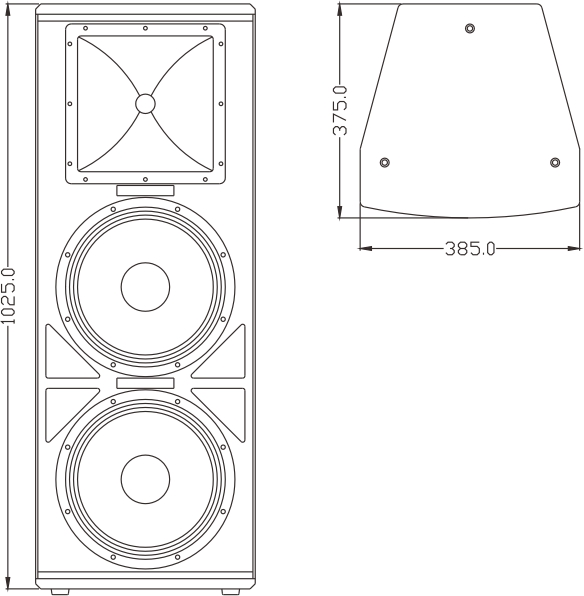

安裝尺寸圖
